Waterproof IP65 Keyless Access Control Keypad Oman

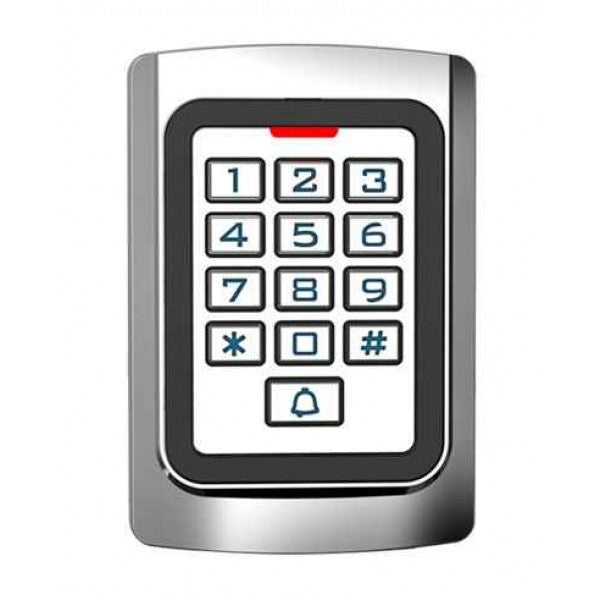

K16EM-W Waterproof RFID Access Control Keypad for Door & Gate Security

Need a keypad that can switch between running solo and plugging into a bigger system? The K16EM-W does both. Set it to Standalone mode and it manages access on its own, or flip it to Reader mode and it feeds card/PIN data into an existing panel using WG26 or WG34 — your choice. That flexibility makes it a solid pick for villas, offices, warehouses, and gates across Muscat, Sohar, Nizwa, and the rest of Oman.

The IP65 waterproof shell means it's built to sit outdoors year-round — sun, dust, rain, all of it — without missing a beat.

Key Features

• IP65 waterproof access control keypad
• Supports up to 2000 users
• RFID card and PIN code authentication
• Card + PIN dual verification mode
• Standalone access control mode
• WG26 and WG34 reader mode support
• Relay toggle function
• Adjustable door opening time
• Built-in short circuit protection
• Suitable for indoor and outdoor installation

Access Methods

• RFID Card Access
• PIN Password Access
• Card + PIN Combination Access

Technical Specifications

• Model: K16EM-W
• Card Type: EM RFID Card
• User Capacity: 2000 Users
• Reading Distance: 3~6cm
• Working Voltage: DC12V ±10%
• Standby Current: ≤30mA
• Electric Lock Output: ≤1A
• Door Opening Time: 0~99 Seconds Adjustable
• Communication: WG26 / WG34
• Operating Modes: Standalone Mode / Reader Mode

Environmental Specifications

• Protection Rating: IP65 Waterproof
• Operating Temperature: -45°C to +60°C
• Humidity Range: 10% to 90% RH
• Outdoor Installation Supported
• Short Circuit Protection: ≤100μs

Physical Specifications

• Dimensions: 119 × 78 × 22 mm
• Compact Keypad Design
• Weatherproof Construction

Operating Modes

• Standalone Access Control Mode
• Pure Reader Mode
• Relay Toggle Mode
• WG26 Communication Mode
• WG34 Communication Mode

Applications

• Villa Access Control Systems
• Apartment Buildings
• Office Entrances
• Commercial Buildings
• Warehouse Security Doors
• Industrial Facilities
• Automatic Gate Systems
• Restricted Access Areas
• Parking Access Control
• Staff Entry Systems

Benefits

• Waterproof outdoor operation
• Flexible authentication methods
• Large user capacity
• Easy installation and programming
• Supports external access control systems
• Reliable long-term performance
• Low power consumption
• Ideal for Oman's climate conditions

Package Includes

• 1 × K16EM-W Waterproof Access Control Keypad
• Mounting Accessories
• Installation Guide
• User Manual

Why Choose the K16EM-W Access Control Keypad?

• IP65 waterproof protection
• Supports 2000 users
• Card and PIN access options
• WG26 and WG34 compatibility
• Standalone and reader operating modes
• Adjustable door opening time
• Suitable for residential and commercial projects
• Professional support available across Oman

Frequently Asked Questions

How many users can the keypad store?
The K16EM-W supports up to 2000 users.

Is the keypad waterproof?
Yes. The keypad features an IP65 waterproof enclosure suitable for outdoor installation.

Which access methods are supported?
The keypad supports RFID card access, PIN password access, and card plus PIN combination verification.

Can it operate as a Wiegand reader?
Yes. The device supports both WG26 and WG34 reader modes.

Is it suitable for Oman's outdoor environments?
Yes. The IP65 design and operating temperature range of -45°C to +60°C make it suitable for Oman's weather conditions.
