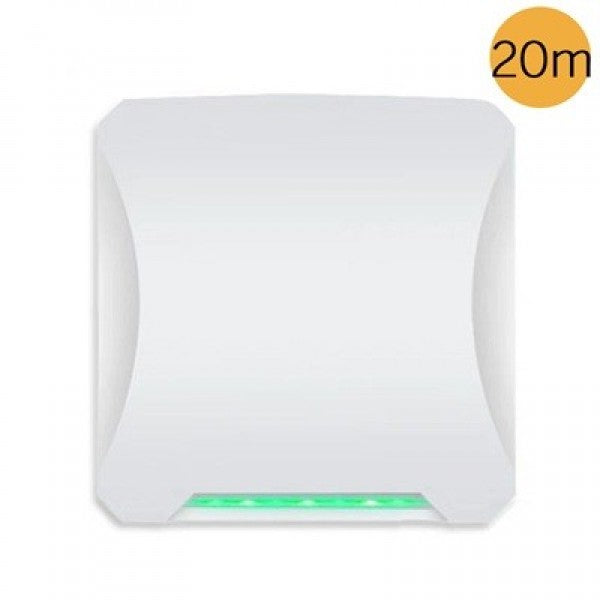

UHF RFID Long Range Reader 20 Meter - 200 Tags (Oman)

20 Meter UHF RFID Reader - The Longest Range Option for Large Sites in Oman

For sites where the entrance is simply too far from the barrier for a standard reader - large logistics yards, industrial compounds, or wide gated communities - the 20 meter reader is the longest-range option available. It identifies vehicles well before they reach the barrier, giving the gate time to open smoothly instead of forcing vehicles to slow down and wait right at the reader. It's a fit for large-scale sites across Muscat's industrial areas, Sohar's port and logistics zones, and similar large compounds elsewhere in Oman.

Built with a 9dBi antenna and adjustable RF power up to 33dBm, it reads up to 200 tags simultaneously and is housed in an industrial-grade waterproof enclosure rated for continuous outdoor duty.

Key Features

• 20 meter reading distance - longest range in the lineup
• Built-in 9dBi circular polarization antenna
• Reads up to 200 tags simultaneously
• Adjustable RF output power up to 33dBm
• Fast tag wake-up recognition
• Frequency hopping anti-interference technology
• Industrial-grade waterproof housing

Technical Specifications

• Processor: ARM7 + UHF Module
• Frequency: 920~925MHz
• Identification Distance: Up to 20 meters
• RF Output Power: 0~33dBm adjustable
• Working Voltage: +12V DC
• Power Consumption: 12W
• Multi-Tag Reading Capacity: up to 200 tags
• Operating Temperature: -20C to +70C
• Dimensions: 260 x 260 x 70 mm

Applications

• Large industrial compounds and logistics yards
• Port and warehouse distribution centers
• Wide gated communities
• Fleet management for large vehicle fleets
• Container yard and asset tracking

Package Includes

• 1 x UHF RFID Long Range Reader (20m)
• Mounting bracket
• Connection accessories
• User manual

Frequently Asked Questions

Why choose 20 meters over a shorter range reader?
It's meant for sites where the barrier sits far from the road, giving vehicles more time to be identified before arrival.

How many tags can it track at once?
Up to 200 RFID tags simultaneously.

Is it built for continuous industrial use?
Yes, it uses an industrial-grade waterproof housing rated -20C to +70C.
