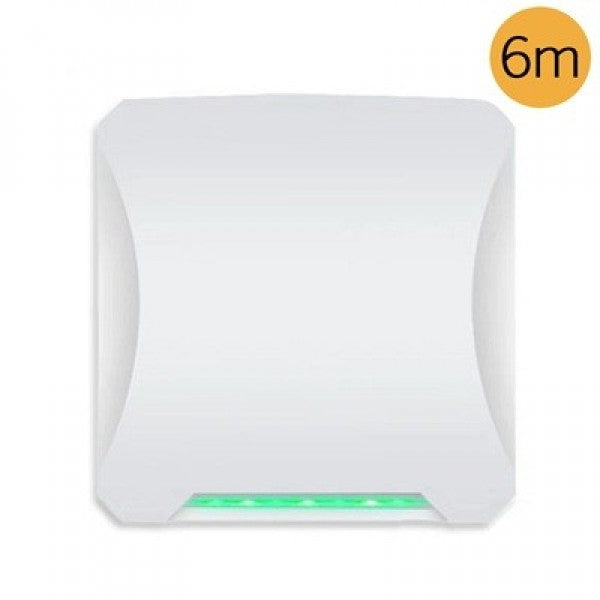

UHF-202406 Long Range RFID Reader - 6 Meter EPC Gen2 (Oman)

UHF-202406 Long Range RFID Reader for Vehicle Access & Parking Systems in Oman

Once a site needs more than a single-lane budget reader, the UHF-202406 is the natural step up. It's built on ARM7 processing with a genuine ISO18000-6C (EPC Gen2) UHF module and a built-in 8dBi circular polarization antenna, so it reads tags reliably at up to 6 meters and can track up to 50 tags at once - useful for compounds with multiple vehicles arriving together, common in gated communities and warehouse yards across Muscat, Sohar, Salalah, and the rest of Oman.

The waterproof housing and wide operating temperature range mean it's built to sit outdoors permanently, handling Oman's summer heat and coastal humidity without needing a shelter.

Key Features

• 6 meter reading distance
• ISO18000-6C (EPC Gen2) protocol support
• Built-in 8dBi circular polarization antenna
• Reads up to 50 tags simultaneously
• Adjustable RF output power, 0~30dBm
• Frequency hopping anti-interference technology
• Waterproof outdoor housing

Technical Specifications

• Model: UHF-202406
• Processor: ARM7 + UHF Module
• Frequency: 920~925MHz
• Identification Distance: Up to 6 meters
• RF Power: 0~30dBm (software adjustable)
• Working Voltage: +12V DC
• Power Consumption: 1W
• Group Reading Capacity: up to 50 tags
• Operating Temperature: -20C to +70C
• Dimensions: 180 x 180 x 60 mm

Applications

• Gated communities with multi-vehicle entry
• Warehouse and distribution center access
• Fleet management systems
• Parking barrier systems
• RFID asset tracking

Package Includes

• 1 x UHF-202406 RFID Long Range Reader
• Mounting bracket
• Connection accessories
• User manual

Frequently Asked Questions

How many tags can it read at once?
Up to 50 RFID tags simultaneously.

Which RFID protocol does it use?
ISO18000-6C (EPC Gen2), the industry standard for vehicle access tags.

Is it suitable for outdoor installation in Oman?
Yes, it's waterproof and rated from -20C to +70C.
