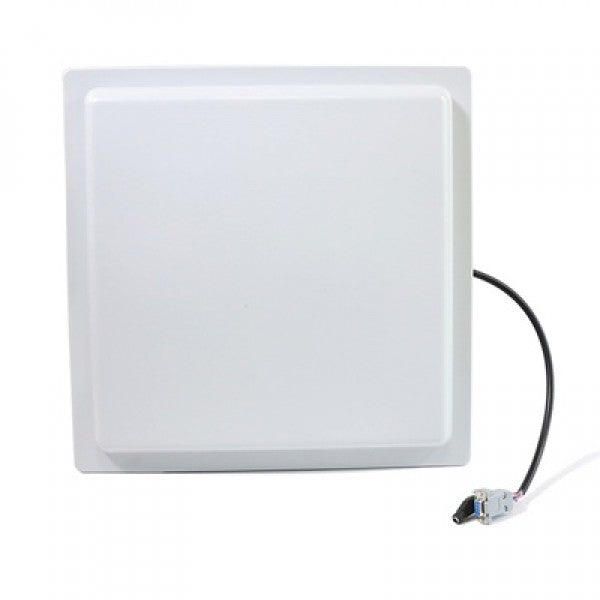

UHF-115 Long Range RFID Reader - 15 Meter Multi-Protocol (Oman)

UHF-115 Long Range RFID Reader - 15 Meter Range with Flexible Protocol Support (Oman)

Not every 15-meter reader needs to be locked into one communication style. The UHF-115 is built for installers who need to match whatever panel or system is already on site - it supports Wiegand 26/34, RS232, and RS485 as standard, with optional Ethernet and WiFi for network-based setups. That protocol flexibility makes it a practical choice when retrofitting an existing access control system in Muscat, Sohar, Nizwa, or elsewhere in Oman, rather than replacing the whole panel to match the reader.

It delivers the same long-range 15 meter identification you'd expect from a professional vehicle access reader, built to handle continuous outdoor use.

Key Features

• 15 meter long range RFID reading
• Multiple communication protocols: Wiegand 26/34, RS232, RS485
• Optional Ethernet and WiFi connectivity
• Optional relay output for direct barrier/lock control
• Passive UHF RFID technology
• Durable outdoor-ready housing

Technical Specifications

• Model: UHF-115
• Technology: Passive UHF RFID
• Reading Distance: Up to 15 meters
• Frequency: 920~925MHz
• Working Voltage: 9~12V DC
• Operating Temperature: -20C to +60C
• Communication: Wiegand 26/34, RS232, RS485, optional Ethernet/WiFi/Relay

Applications

• Retrofitting existing access control panels
• Vehicle access control systems
• Parking management systems
• Gated communities and commercial buildings
• Network-integrated (Ethernet/WiFi) installations

Package Includes

• 1 x UHF-115 RFID Long Range Reader
• Mounting bracket
• Connection cable
• User manual

Frequently Asked Questions

Which communication protocols does it support?
Wiegand 26/34, RS232, and RS485, with optional Ethernet and WiFi.

Can I use it with my existing access control panel?
Yes, its multi-protocol support is designed for easy integration with existing systems.

What is the reading distance?
Up to 15 meters depending on tag quality and installation conditions.
