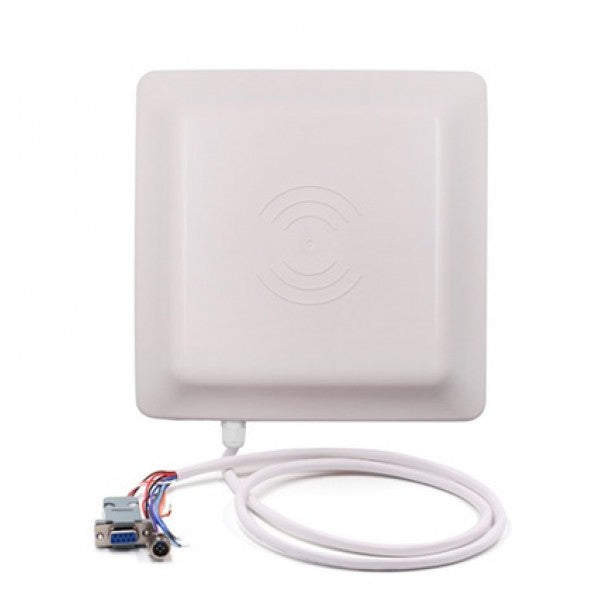

UHF-105 UHF RFID Long Range Reader (Up to 6M) - Oman

UHF-105 Long Range RFID Reader for Vehicle Access Control in Oman

Looking for an entry-level long range reader that you can fine-tune to your exact gate or barrier setup? The UHF-105 is built around one key idea: adjustable reading distance. Instead of being locked into a fixed range, installers can tune the reader for distances up to 6 meters, which makes it a flexible, budget-friendly choice for smaller residential compounds, single-lane barriers, and staff parking areas across Muscat, Sohar, Nizwa, and other locations in Oman.

It communicates over Wiegand 26, Wiegand 34, RS232, and RS485, with optional Ethernet, WiFi, and relay output for more advanced integrations, so it drops into most existing barrier and access control panels without a redesign.

Key Features

• Adjustable reading distance up to 6 meters
• Passive UHF RFID technology, EPC Global Class 1 Gen 2
• Always Read and Trigger Read operating modes
• External trigger input support
• Multiple communication protocols: Wiegand 26/34, RS232, RS485
• Optional Ethernet, WiFi, and relay output
• Durable ABS engineering plastic housing for outdoor use

Technical Specifications

• Model: UHF-105
• Technology: Passive UHF RFID, EPC Global UHF Class 1 Gen 2
• Reading Distance: Up to 6 meters (adjustable)
• Frequency: 920~925MHz
• Dimensions: 227 x 227 x 60 mm
• Working Voltage: 9~12V DC
• Working Current: 150mA
• Operating Temperature: -20C to +60C
• Housing Material: ABS Engineering Plastic
• Multiple Tag Identification: less than 10 tags

Applications

• Small to mid-size residential compounds in Oman
• Single-lane parking barriers
• Staff and visitor vehicle access points
• Warehouses and small logistics yards
• Automatic gate systems

Package Includes

• 1 x UHF-105 RFID Long Range Reader
• Mounting bracket
• Connection cable
• User manual

Frequently Asked Questions

What is the maximum reading distance?
Up to 6 meters, and it can be tuned down for tighter installations.

Can it work with parking barriers?
Yes, it integrates with parking barriers, automatic gates, and access control panels via Wiegand or RS232/RS485.

Is it suitable for Oman's outdoor conditions?
Yes, it's rated for -20C to +60C, suitable for outdoor installation across Oman.
