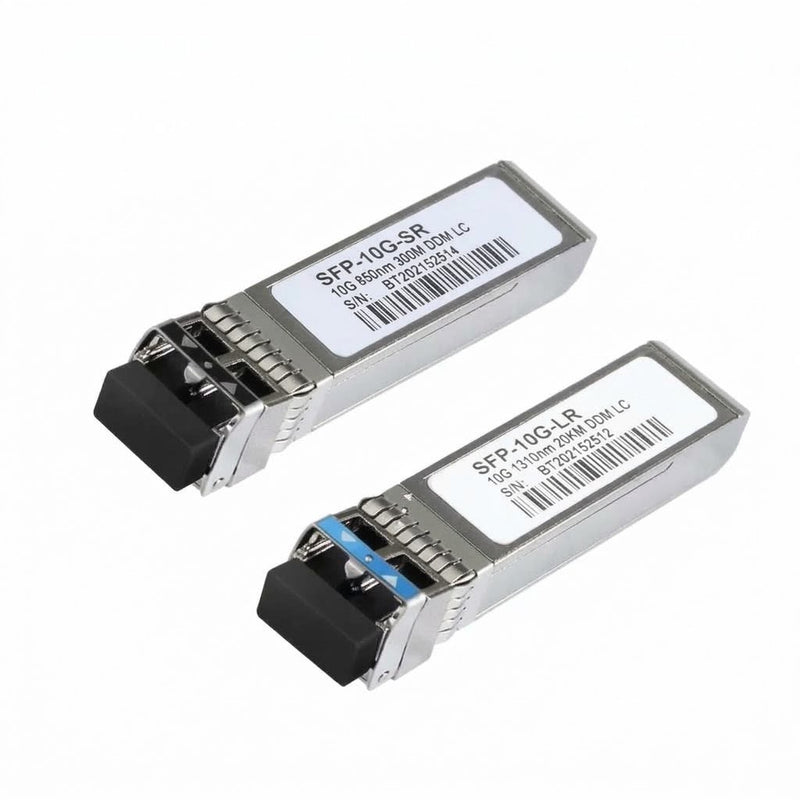

SFP Modules in Oman - Single Mode, Multimode and BiDi
Axovia Tech offers a complete range of SFP fiber optic transceiver modules in Oman, tested for stable, high-speed network performance. Available in 1G SFP, 10G SFP+ and 25G SFP28, in single mode, multimode and BiDi (single fiber) options with LC connector. Ideal for switches, routers, media converters, OLTs and servers. Fast delivery across Muscat and all of Oman.
Key Features
- Speed: 100M, 1.25G (1G SFP), 10G (SFP+), 25G (SFP28)
- Fiber type: Single mode (OS2) and Multimode (OM1, OM2, OM3, OM4)
- Type: Dual fiber (duplex LC) and BiDi single fiber (1310/1550nm)
- Wavelength: 850nm, 1310nm, 1550nm
- Distance: 550m, 2km, 10km, 20km, 40km, 80km depending on model
- Connector: LC
- Copper option: SFP RJ45 module for 1G Ethernet
- DDM / DOM support (real-time monitoring of temperature, power and voltage)
- Hot-pluggable, easy to install and replace
- 100% tested before delivery
Specifications
| Product | SFP / SFP+ Fiber Optic Transceiver Module |
| Form Factor | SFP, SFP+, SFP28 |
| Data Rate | 100M / 1G / 10G / 25G |
| Fiber Mode | Single Mode (OS2) / Multimode (OM1, OM2, OM3, OM4) |
| Wavelength | 850nm / 1310nm / 1550nm / BiDi 1310-1550nm |
| Transmission Distance | Up to 80km (depends on model) |
| Connector | LC (Duplex or BiDi Simplex) |
| DDM / DOM | Supported |
| Power Supply | 3.3V |
| Operating Temperature | 0°C to +70°C |
Applications
- Switch to switch fiber uplinks
- CCTV and IP camera networks
- FTTH and telecom installations (OLT, ONU)
- Data centers and server rooms
- Media converters, routers and firewalls
- Commercial buildings, offices and industrial networks
Why Buy from Axovia Tech?
- Quality networking products at competitive prices
- Wide range of speeds and distances in stock
- Fast delivery across Muscat and all of Oman
- Technical support to help you choose the right module
Frequently Asked Questions
What is an SFP module?
An SFP (Small Form-factor Pluggable) module is a hot-pluggable transceiver that plugs into a switch, router or media converter and converts electrical signals to light for fiber optic connections.
What is the difference between SFP and SFP+?
SFP supports up to 1G speed, while SFP+ supports 10G. Both look the same, but the port on your device must support the speed of the module.
What is the difference between single mode and multimode SFP?
Single mode SFP (1310nm or 1550nm, yellow cable) is used for long distances up to 80km. Multimode SFP (850nm, aqua or orange cable) is used for short distances, usually up to 550m inside buildings.
What is a BiDi SFP?
BiDi SFP sends and receives data over a single fiber using two wavelengths. BiDi modules must be used in pairs, for example 1310nm on one side and 1550nm on the other.
Which fiber cable should I use with the SFP module?
Use a single mode LC patch cord with single mode SFP and a multimode LC patch cord with multimode SFP. The cable type must match the module.
Will this SFP work with my switch?
Most SFP modules work with standard switches, but some brands lock their ports to specific modules. Send us your switch model and we will confirm compatibility before you order.
