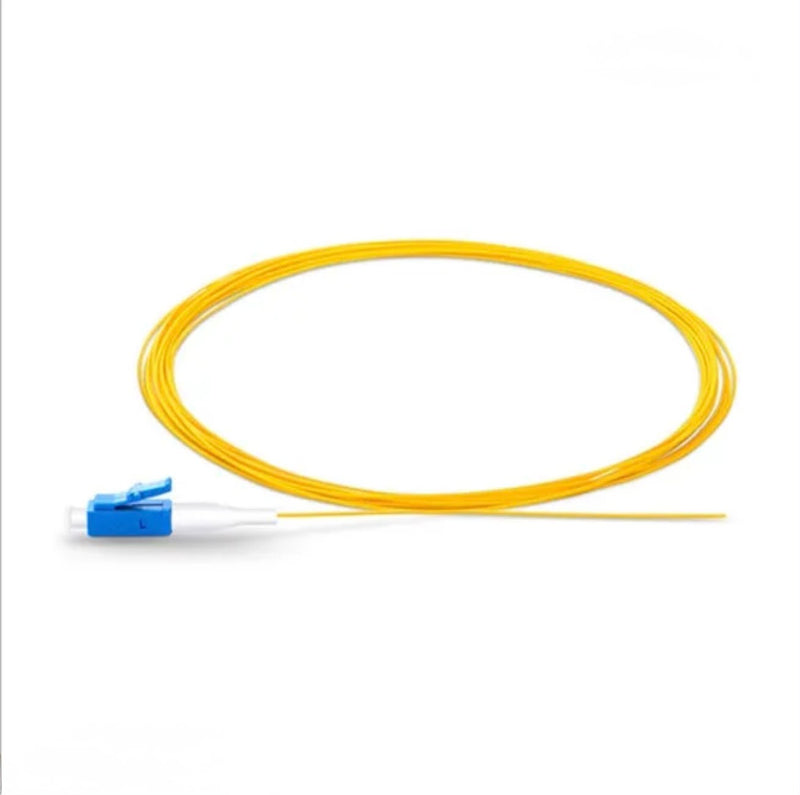

Fiber Optic Pigtails in Oman - All Connector Types
Axovia Tech offers a complete range of fiber optic pigtails in Oman, factory-terminated on one end and tested for reliable, low-loss splicing. Available in LC, SC, FC, ST, MTRJ and E2000 connectors, in single mode and multimode, with UPC and APC polish and multiple lengths. Ideal for fusion splicing inside ODFs, fiber distribution boxes and splice trays. Fast delivery across Muscat and all of Oman.
Key Features
- Connector types: LC, SC, FC, ST, MTRJ, E2000
- Type: Simplex pigtail (one connector, one bare fiber end) and duplex pigtail (two fibers)
- Fiber type: Single mode OS2 (yellow), Multimode OM1, OM2 (orange), OM3 (aqua), OM4 (aqua/violet)
- Polish: UPC (blue) and APC (green)
- Fiber buffer: 0.9mm tight-buffered, easy to strip and splice
- Jacket: PVC / LSZH
- Lengths: 1m, 1.5m, 2m, 3m and custom lengths on request
- Low insertion loss and high return loss for stable signal quality
- 100% tested before delivery
Specifications
| Product | Fiber Optic Pigtail |
| Connectors | LC, SC, FC, ST, MTRJ, E2000 |
| Cable Type | Simplex / Duplex |
| Fiber Mode | Single Mode (OS2) / Multimode (OM1, OM2, OM3, OM4) |
| Polish | UPC / APC |
| Fiber Diameter | 0.9mm tight buffer |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | UPC ≥ 50 dB, APC ≥ 60 dB (single mode) |
| Jacket Material | PVC / LSZH |
| Operating Temperature | -20°C to +70°C |
Applications
- Fusion splicing in ODFs and fiber distribution boxes
- FTTH and telecom installations
- CCTV and IP camera networks
- Data centers and server rooms
- Commercial buildings, offices and industrial networks
Why Buy from Axovia Tech?
- Quality networking products at competitive prices
- Wide range of connectors and lengths in stock
- Fast delivery across Muscat and all of Oman
- Technical support for your installation
Frequently Asked Questions
What is a fiber optic pigtail?
A pigtail is a short fiber cable with a connector on one end and bare fiber on the other. The bare end is fusion spliced to a fiber cable, so the cable can be connected to equipment through the connector.
What is the difference between a pigtail and a patch cord?
A patch cord has connectors on both ends and is plugged directly between devices. A pigtail has a connector on one end only and is spliced into the cable.
What is the difference between single mode and multimode pigtails?
Single mode (yellow, OS2) is used for long distances. Multimode (OM1 to OM4) is used for shorter distances inside buildings and data centers. The pigtail must match the cable type you are splicing to.
What is the difference between UPC and APC?
UPC (blue) has a flat polish, APC (green) has an angled 8° polish with lower back reflection. Always connect APC to APC and UPC to UPC.
How do I choose the right connector?
Check the adapters on your ODF or equipment. SC is common on ODFs and media converters, LC on SFP modules. Contact us if you need help choosing.
