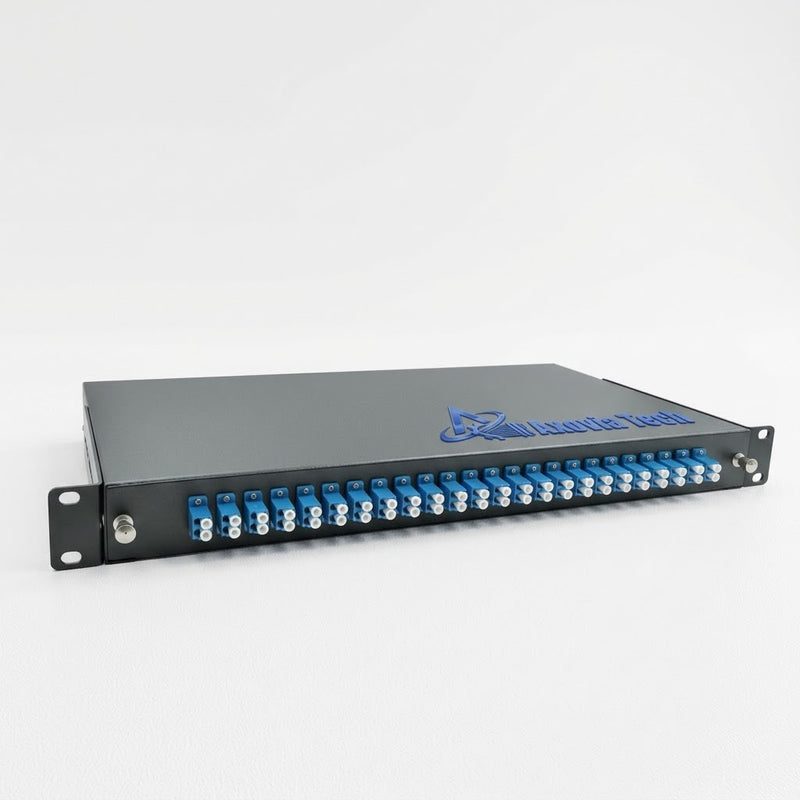

Fiber Optic Patch Panels in Oman - 8 to 48 Ports, Loaded and Unloaded

Axovia Tech offers a complete range of fiber optic patch panels (ODF) in Oman, from 8 ports to 48 ports, available loaded (with adapters, pigtails and splice tray) and unloaded (empty panel). Supports SC, LC, FC, ST, E2000 and MTRJ connectors, in single mode and multimode, simplex and duplex. Ideal for terminating, splicing and managing fiber cables in racks, server rooms and telecom cabinets. Fast delivery across Muscat and all of Oman.

Key Features

• Port capacity: 8, 12, 16, 24, 36 and 48 ports
• Connector types: SC, LC, FC, ST, E2000, MTRJ
• Loaded panel: Supplied with fiber adapters, pigtails, splice tray, heat shrink sleeves and cable ties, ready for splicing
• Unloaded panel: Empty panel with splice tray, so you choose your own adapters and pigtails
• Fiber type: Single mode (OS2) and Multimode (OM1, OM2, OM3, OM4)
• Polish: UPC (blue) and APC (green)
• Mounting: 19 inch rack mount (1U / 2U) and wall mount options
• Material: Cold-rolled steel with powder coating, strong and corrosion resistant
• Sliding or fixed drawer type, with fiber management and bend radius protection
• Cable entry points with grommets and cable fixing for fiber protection
• 100% tested before delivery

Available Models

Specifications

Package Includes (Loaded Panel)

• 1 x Fiber patch panel with splice tray
• Fiber adapters (as per selected port count)
• Fiber pigtails (as per selected port count)
• Heat shrink splice sleeves
• Cable ties, screws and mounting accessories

Applications

• Fiber termination and splicing in server rooms and data centers
• CCTV and IP camera backbone networks
• FTTH and telecom installations
• Building to building fiber links
• Offices, factories, hospitals and commercial buildings
• Connecting switches, media converters and SFP modules through patch cords

Why Buy from Axovia Tech?

• Quality networking products at competitive prices
• Wide range of port counts and connector types
• Loaded and unloaded panels available
• Fast delivery across Muscat and all of Oman
• Technical support to help you choose the right panel

Frequently Asked Questions

What is a fiber patch panel?
A fiber patch panel (also called ODF, Optical Distribution Frame) is a box that holds fiber adapters and manages fiber cables. The incoming fiber cable is spliced to pigtails inside the panel, and devices are connected to the front adapters using patch cords.

What is the difference between loaded and unloaded patch panels?
A loaded panel comes with adapters, pigtails and splice sleeves already included, so it is ready for splicing. An unloaded panel is empty (no adapters or pigtails), so you add your own. Unloaded is cheaper and gives you more flexibility.

How many ports do I need?
Count the fiber cores you need to terminate and add some spare ports for future expansion. For example, a 24 core cable needs a 24 port panel. With duplex LC adapters, one adapter has two ports, so a 24 port LC panel can hold 48 fibers.

Which connector should I choose?
SC is common on ODFs, media converters and FTTH. LC is used on SFP modules and high-density panels. FC and ST are used in telecom and older equipment. Choose the connector that matches your patch cords and devices.

Single mode or multimode panel?
The panel and pigtails must match your fiber cable. Single mode (OS2, yellow) is for long distances and most CCTV and telecom links. Multimode (OM3, aqua) is for short distances inside buildings and data centers.

Do I need pigtails and a splicing machine?
Yes. To connect a fiber cable to the panel, you splice the cable cores to pigtails with a fusion splicer. Loaded panels include the pigtails, and for unloaded panels you buy them separately from our store.
