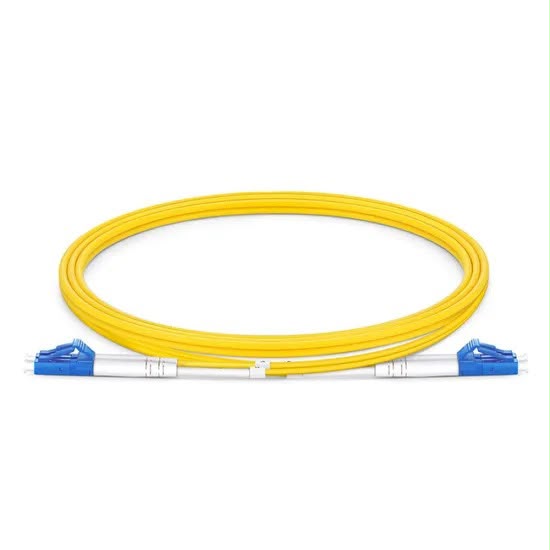

Fiber Optic Patch Cords in Oman - All Connector Types
Axovia Tech offers a complete range of fiber optic patch cords in Oman, factory-terminated and tested for reliable, high-speed network performance. Available in LC, SC, FC, ST, MTRJ and E2000 connectors, in simplex and duplex, single mode and multimode, with multiple lengths and jacket options. Ideal for switches, media converters, routers, ODFs and fiber distribution boxes. Fast delivery across Muscat and all of Oman.
Key Features
- Connector types: LC-LC, SC-SC, FC-FC, ST-ST, LC-SC, LC-FC, LC-ST, SC-FC, SC-ST, FC-ST, MTRJ, E2000
- Mode: Simplex (1 fiber) and Duplex (2 fibers)
- Fiber type: Single mode OS2 (yellow), Multimode OM1, OM2 (orange), OM3 (aqua), OM4 (aqua/violet)
- Polish: UPC (blue) and APC (green)
- Jacket: 2.0mm, 3.0mm, PVC / LSZH
- Lengths: 1m, 2m, 3m, 5m, 10m, 15m, 20m and custom lengths on request
- Low insertion loss and high return loss for stable signal quality
- 100% tested before delivery
Specifications
| Product | Fiber Optic Patch Cord |
| Connectors | LC, SC, FC, ST, MTRJ, E2000 |
| Cable Mode | Simplex / Duplex |
| Fiber Mode | Single Mode (OS2) / Multimode (OM1, OM2, OM3, OM4) |
| Polish | UPC / APC |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | UPC ≥ 50 dB, APC ≥ 60 dB (single mode) |
| Jacket Material | PVC / LSZH |
| Operating Temperature | -20°C to +70°C |
Applications
- CCTV and IP camera networks
- FTTH and telecom installations
- Data centers and server rooms
- Switch to ODF and media converter connections
- Commercial buildings, offices and industrial networks
Why Buy from Axovia Tech?
- Quality networking products at competitive prices
- Wide range of connectors and lengths in stock
- Fast delivery across Muscat and all of Oman
- Technical support for your installation
Frequently Asked Questions
What is the difference between simplex and duplex patch cords?
Simplex has one fiber (one direction of data per cable), while duplex has two fibers for sending and receiving at the same time. Duplex is used with most switches and SFP modules.
What is the difference between single mode and multimode?
Single mode (yellow, OS2) is used for long distances, up to many kilometers. Multimode (OM1 to OM4) is used for shorter distances inside buildings and data centers.
What is the difference between UPC and APC?
UPC (blue) has a flat polish, APC (green) has an angled 8° polish with lower back reflection. Always connect APC to APC and UPC to UPC.
How do I choose the right connector?
Check the ports on your device. Most SFP modules use LC, while many media converters and ODFs use SC. Contact us if you need help choosing.
