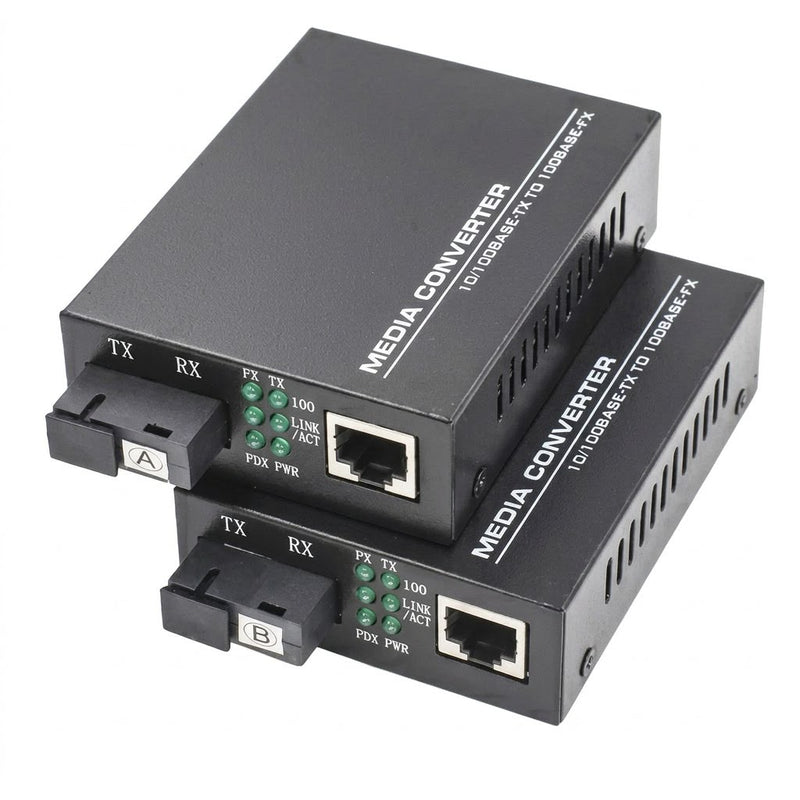

Fiber Optic Media Converter in Oman - 10/100M Single Fiber (A/B Pair)
Axovia Tech offers 10/100M fiber media converters in Oman for converting RJ45 Ethernet (10/100BASE-TX) to fiber optic (100BASE-FX). This single fiber BiDi media converter works as an A/B pair over one single mode fiber with an SC connector. It is ideal for extending IP cameras, switches and network devices over long distances. Fast delivery across Muscat and all of Oman.
Key Features
- Conversion: 10/100BASE-TX (RJ45) to 100BASE-FX (fiber)
- Type: Single fiber BiDi, sold as an A/B pair (one A unit and one B unit)
- Fiber type: Single mode (OS2), 9/125µm
- Wavelength: TX 1310nm / RX 1550nm (A side) and TX 1550nm / RX 1310nm (B side)
- Distance: Up to 20km
- Fiber connector: SC
- Ethernet port: RJ45, auto MDI/MDIX
- LED indicators for power, link/activity, speed and fiber status
- Plug and play, no configuration needed
- Compact metal housing for good heat dissipation
- 100% tested before delivery
Specifications
| Product | 10/100M Single Fiber Media Converter |
| Standards | IEEE 802.3 10BASE-T, 100BASE-TX, 100BASE-FX |
| Ethernet Port | 1 x RJ45 (10/100M, auto-negotiation) |
| Fiber Port | 1 x SC (single fiber) |
| Fiber Mode | Single Mode (OS2) 9/125µm |
| Wavelength | A: TX 1310nm / RX 1550nm, B: TX 1550nm / RX 1310nm |
| Transmission Distance | Up to 20km |
| LED Indicators | PWR, FX, TX, 100, LINK/ACT, FDX |
| Power Supply | 5V DC external adapter |
| Housing | Metal |
| Operating Temperature | -10°C to +60°C |
Applications
- CCTV and IP camera long distance connections
- Connecting two buildings with a single fiber
- Switch to switch fiber links
- FTTH and telecom installations
- Access control, gate automation and industrial networks
- Offices, factories, farms and commercial buildings
Why Buy from Axovia Tech?
- Quality networking products at competitive prices
- A/B pairs tested and ready to use
- Fast delivery across Muscat and all of Oman
- Technical support for your installation
Frequently Asked Questions
What is a fiber media converter?
A media converter changes the signal between copper Ethernet (RJ45) and fiber optic. It lets you extend a network over long distances where a normal network cable cannot reach (copper is limited to 100m).
What does A and B mean on the converter?
This is a BiDi (single fiber) converter. The A unit and B unit use different wavelengths, so they must be used together as a pair. Two A units or two B units will not link.
How many media converters do I need?
You need two, one at each end. This product is supplied as an A/B pair (or as individual units, check the variant you select).
Which fiber cable should I use?
Use a single mode simplex SC patch cord (yellow) from the converter to your fiber cable or ODF. Do not use multimode cable with this converter.
What is the maximum distance?
Up to 20km over single mode fiber, depending on the quality of the fiber and the number of splices and connectors.
Can I use it with IP cameras?
Yes. It works with IP cameras, NVRs, switches and PoE switches. Note that the converter does not supply PoE, so you need a separate PoE injector or switch for powered cameras.
